Silicon Coated Wirewound Resistors
Tested for quality & performance, our
Silicon coated wire wound resistors are widely used across industries. We
manufacture & export silicon coated wire wound resistors that are
developed according to client's requirement & application areas.

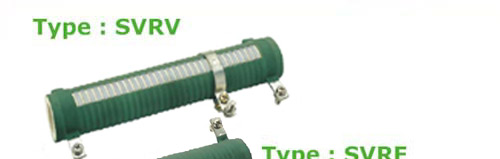

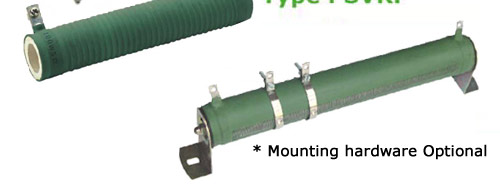

FIXED TYPE & ADJUSTABLE TYPE WIREWOUND
RESISTORS
In this type resistor is wound with Copper Nickel or
Nickel Chromium wire on ceramic tube and then coated with high temperature
non-flamable silicone coating. These resistors are suitable as loading
resistors, braking resistor, capacitor discharge & many more
application.
Features
- Strong Terminals
- Resistance Value unchanged after long term use.
- Multi-terminal Types or adjustable types available.
- Non-inductive type available.
- Mounting hardware for all resistors available.
- Custom built resistors is our speciality.
|
|
| Operating Temp |
-55°C to +250°C |
| Dielectric Strength |
AC1000V for 1 min |
| Temp. Coefficient |
50 ppm/°C, 100 ppm/°C, 260
ppm/°C |
| Short Time Over Load |
10 X Wattage Rating, 5 sec |
| Moisture resistance |
temp 40°C moisture
95% DC100v500h |
| Thermal Shock |
Wattage Rating 30min. -25°C,
15min |
| Vibration |
10c/c ~ 50 c/s ~ 10 c/s (1min) -2h
each of paralleled and right angle. |
| Load Life |
Wattage Rating 1.5 h On, 30min off,
1000h |
| Derate to zero |
Above 250°C |
 |
|
|
| Watts |
RESISTANCE
RANGE |
DIMENSIONS (MM) |
| FIXED TYPE |
ADJUSTABLE
TYPE |
L |
W |
D |
L1 |
H |
| 25W |
0.1W
- 25K |
0.1W
- 3.0K |
65 |
8 |
16 |
83 |
33 |
| 30W |
0.1W
- 30K |
0.1W
- 3.3K |
78 |
8 |
16 |
96 |
33 |
| 40W |
0.1W
- 40K |
0.1W
- 4.9K |
75 |
8 |
20 |
95 |
35 |
| 50W |
0.1W
- 50K |
0.1W
- 6.0K |
100 |
8 |
20 |
120 |
35 |
| 75W |
0.1W
- 75K |
0.1W
- 9.0K |
150 |
8 |
20 |
170 |
35 |
| 100W |
1W
- 100K |
1W
- 12K |
150 |
8 |
26 |
172 |
52 |
| 150W |
1W
- 150K |
1W
- 16K |
175 |
8 |
34 |
201 |
60 |
| 200W |
1W
- 200K |
1W
- 24K |
200 |
8 |
34 |
226 |
60 |
| 250W |
1W
- 250K |
1W
- 30K |
250 |
8 |
34 |
276 |
60 |
| 300W |
1W
- 300K |
1W
- 50K |
300 |
15 |
34 |
326 |
60 |
| 400W |
1W
- 400K |
1W
- 60K |
250 |
15 |
62 |
320 |
103 |
| 500W |
1W
- 500K |
1W
- 80K |
300 |
15 |
62 |
370 |
103 |
| 600W |
1W
- 600K |
1W
- 90K |
350 |
15 |
62 |
420 |
103 |
| 750W |
1W
- 700K |
1W
- 100K |
400 |
15 |
62 |
470 |
103 |
| 1000W |
1W
- 800K |
1W
- 110K |
500 |
15 |
62 |
570 |
103 |
| 1250W |
1W-
900K |
1W
- 120K |
550 |
15 |
62 |
620 |
103 |
| 1500W |
1W
- 1000K |
1W
- 130K |
600 |
15 |
62 |
670 |
103 |
We Assist in developing custom built
resistors for applications
